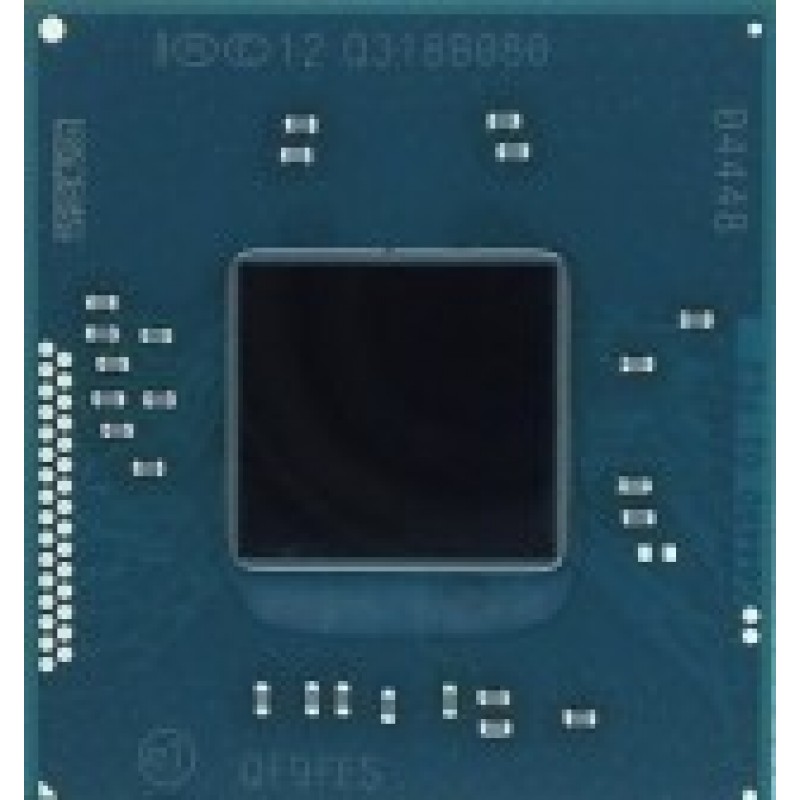

Процессор SoC BGA1170 Intel Celeron N2810 QF9FES Bay Trail-M

Производитель: Intel
Код Товара: 60105
1700 р.

  • Наличие: Нет в наличии 0


TypeSystem-on-a-Chip
Market segmentMobile
Family
Intel Mobile Celeron (Bay Trail-M)
Model number  ? N2810
SoC part number
  • FH8065301564501 is an OEM/tray SoC
Frequency  ? 2000 MHz
Low power frequency533 MHz
Package1170-ball micro-FCBGA
SocketBGA1170
Size1.06" x 0.98" / 2.7cm x 2.5cm
Introduction dateSeptember 11, 2013
End-of-Life dateLast order date for tray processors is February 21, 2014
Last shipment date for tray processors is April 25, 2014
Price at introduction$132
S-spec numbers
Part numberProduction processors
 SR1LX
FH8065301564501+
Architecture / Microarchitecture
MicroarchitectureSilvermont
PlatformBay Trail-M
Processor core  ? Bay Trail-M
Core stepping  ? B2 (SR1LX)
CPUID30673 (SR1LX)
Manufacturing process0.022 micron
Data width64 bit
The number of CPU cores2
The number of threads2
Floating Point UnitIntegrated
Level 1 cache size  ? 2 x 32 KB 8-way set associative instruction caches
2 x 24 KB 6-way set associative data caches
Level 2 cache size  ? 1 MB 16-way set associative shared cache
Physical memory8 GB
MultiprocessingNot supported
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?
  • EM64T / Extended Memory 64 technology / Intel 64  ?
  • VT-x / Virtualization technology  ?
Security FeaturesNX / XD / Execute disable bit  ?
Low power features
  • Core C1/C1E, C6 and C7 states
  • Package C1/C1E, C6 and C7 states
  • Enhanced SpeedStep technology  ?
Integrated peripherals / components
Display controller2 displays
Integrated graphicsGPU Type: HD (Gen 7)
Base frequency (MHz): 311
Maximum frequency (MHz): 756
Memory controllerThe number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1066
DIMMs per channel: 1
Maximum memory bandwidth (GB/s): 17
Other peripherals
  • PCI Express 2.0 interface (4 lanes)
  • SATA 2.0 interface (2 ports)
  • USB xHCI controller
  • High Definition Audio
  • eMMC / SDIO / SD controller
  • 2 high-speed UART interfaces
  • Trusted Execution Engine
  • Legacy I/O
Electrical / Thermal parameters
V core  ? 0.4V - 1.14V
Maximum operating temperature  ? 100°C
Thermal Design Power  ? 7.5 Watt
