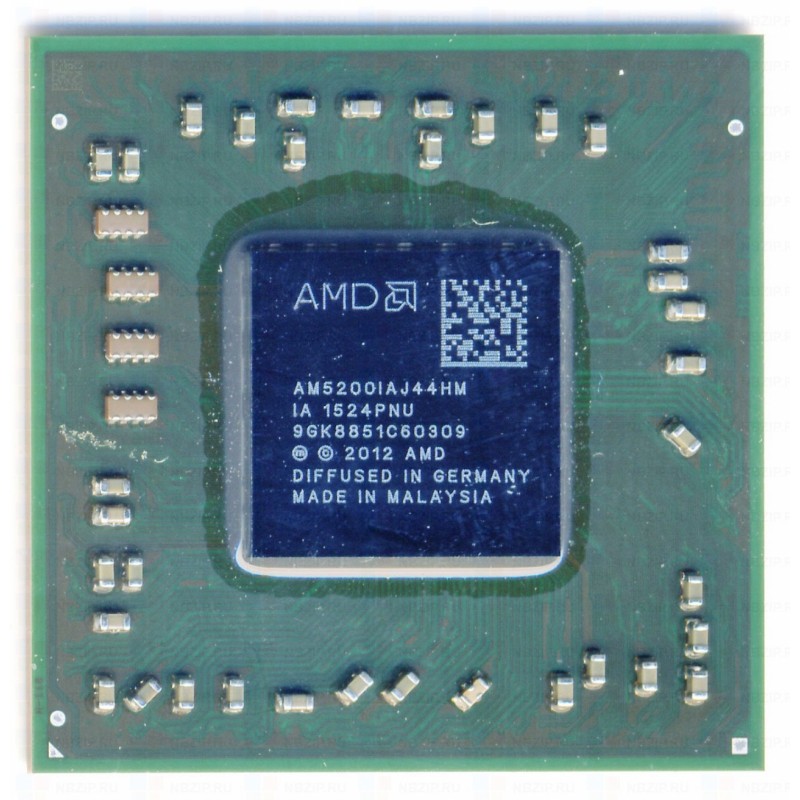

Процессор AMD AM5200IAJ44HM A6-5200 BGA

Производитель: AMD

Код Товара: 60051

0 отзывов

3800

ДОСТАВКА (при заказе от 10 000 руб бесплатно):

ПОЧТА РФ по России: 400 руб

CDEK посчитается автоматически в Оформлении заказа при указании города

Наличие: Нет в наличии 0

Новый

Type	CPU / Microprocessor
Market segment	Mobile
Family	AMD A6-Series for Notebooks
Model number ?	A6-5200
CPU part number	AM5200IAJ44HM is an OEM/tray microprocessor
Frequency ?	2000 MHz
Package	769-ball lidless Flip Chip Ball Grid Array (BOL769)
Socket	BGA769 (FT3)
Size	0.96" x 0.96" / 2.45cm x 2.45cm
Weight	0.1oz / 2.6g
Introduction date	May 23, 2013
Architecture / Microarchitecture
Microarchitecture	Jaguar
Processor core ?	Kabini
Core stepping ?	KB-A1
CPUID	700F01
Manufacturing process	0.028 micron
Data width	64 bit
The number of CPU cores	4
The number of threads	4
Floating Point Unit	Integrated
Level 1 cache size ?	4 x 32 KB 2-way set associative instruction caches 4 x 32 KB 8-way set associative data caches
Level 2 cache size ?	2 MB 16-way set associative shared inclusive cache
Level 3 cache size	None
Physical memory	32 GB
Pipeline	16-stage ^[1]
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ? SSE4a ? AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions BMI1 / Bit Manipulation instructions 1 F16C / 16-bit Floating-Point conversion instructions AMD64 / AMD 64-bit technology ? EVP / Enhanced Virus Protection ? AMD-V / AMD Virtualization technology
Low power features	Core C1 and CC6 states Package PC6 state S3, S4 and S5 sleep states PowerNow!
Integrated peripherals / components
Integrated graphics	GPU Type: Radeon HD 8400 Microarchitecture: Sea Islands Shader cores: 128 Base frequency (MHz): 600
Memory controller	The number of controllers: 1 Memory channels: 1 Channel width (bits): 64 Supported memory: DDR3-1600, DDR3L-1600, DDR3U-1066 DIMMs per channel: up to 2 Maximum memory bandwidth (GB/s): 12.8
Other peripherals	PCI Express 2.0 interface (4 lanes) Universal Video Decoder 4.2 Video Compression Engine 2.0 ? High Definition Audio SD controller USB 3.0 controller Serial ATA 3.0 controller LPC bus General Purpose I/O
Electrical / Thermal parameters
Maximum operating temperature ?	90°C
Thermal Design Power ?	25 Watt
