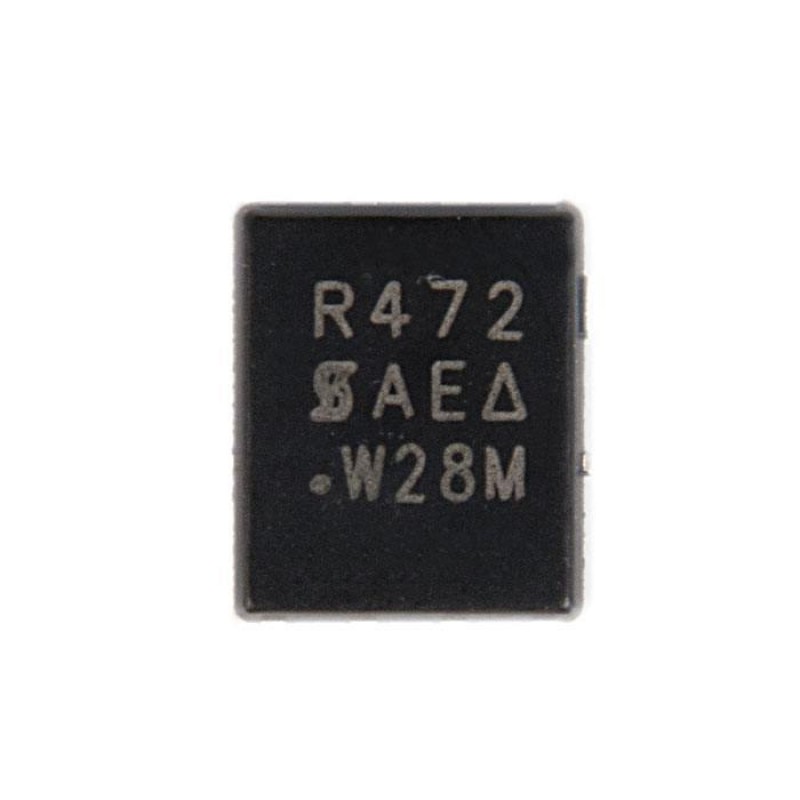

Производитель: Vishay Intertechnology
Код Товара: 06-31003
50 р.
ДОСТАВКА (при заказе от 10 000 руб бесплатно):
ПОЧТА РФ по России: 400 руб
CDEK посчитается автоматически в Оформлении заказа при указании города
- Наличие: В наличии 8
Product Category Power MOSFET
Configuration Single Quad Drain Triple Source
Technology TrenchFET
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 30
Maximum Gate Source Voltage (V) ±20
Typical Gate to Drain Charge (nC) 2.3
Typical Gate to Source Charge (nC) 2.5
Maximum Continuous Drain Current (A) 14
Typical Reverse Recovery Charge (nC) 6
Maximum Gate Threshold Voltage (V) 2.5
Maximum Drain Source Resistance (mOhm) 12@10V
Typical Gate Charge @ Vgs (nC) 15@10V|6.8@5V
Typical Gate Charge @ 10V (nC) 15
Typical Input Capacitance @ Vds (pF) 820@15V
Maximum Power Dissipation (mW) 3900
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Typical Output Capacitance (pF) 195
Packaging Tape and Reel
Typical Turn-On Delay Time (ns) 16
Typical Turn-Off Delay Time (ns) 16
Typical Fall Time (ns) 10
Typical Rise Time (ns) 12
Maximum Gate Source Leakage Current (nA) 100
Maximum IDSS (uA) 1
Mounting Surface Mount
Package Height (mm) 1.07(Max)
Package Length (mm) 4.9
Package Width (mm) 5.89
PCB changed 8
Standard Package Name SOP
Supplier Package PowerPAK SO EP
Pin Count 8
| Состояние | |
| Новый | |
